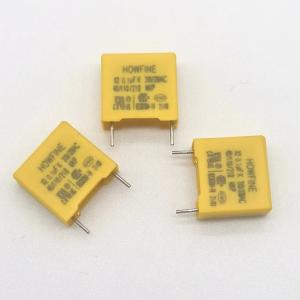

Small Size Reduction Voltage Self Healing Capacitor 0.1uF / 275V / 310V

Name: Small Size Reduction Voltage Self Healing Capacitor 01uF 275V 310V
Brand: HOWFINE
Price: 0.15 USD

Quality Small Size Reduction Voltage Self Healing Capacitor 0.1uF / 275V / 310V wholesale

Brand Name : HOWFINE

Model Number : MKP X2

Certification : UL CQC ENEC

Place of Origin : China

MOQ : 10000 Pieces

Price : RMB 0.15/PCS

Payment Terms : T/T

Supply Ability : 1500K Pieces per Month

Delivery Time : 15 work days

Packaging Details : 500pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 14000pcs/ box

Type : X2 Safety Capacitor

Capacitance : 0.1uF

Passive flammability class : B

Capacitance tolerance : ±10%(K)

Pitch : 10mm

Color : Yellow

Operating Temperature : -40℃~+110℃

Material : Metallized polypropylene structure

Climatic category : 40/110/56

Performance : Strong self-healing

Packing : in bulk

Application : Widely used in across-the-line,interference suprression circuit,motor, fan, air conditioner etc.

Supplier Type : Original manufacturer

Size : 13mm*12mm*6mm

Dissipation Farcto : less than 0.1%

Contact Now

X2104K310VC3L4.pdf

Resistance-capacitorce, reduction voltage capacitor 0.1uF/275V/310V small size

PRODUCT INFORMATION

Introduction:

1. Safety Capacitors : High Stability

2. Non-inductive.

3. Self-healing characteristics.

4. Plastic case, epoxy resin filled, box made of solvent resistant material.

5. Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.

6. Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2

7. Safety Approved (UL. ENEC. CQC)

8. The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin

encapsulation in the in the plastic shell, fire-retardant performance reaches UL94V-0 grade.

1. Operating temperature: -40°C ~ +110°CSpecifications

2. Capacitance range: 0.01uF~3.3uF

3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )

4. Rated voltage: 310VAC,330VAC

5. Dissipation factor:0.1%MAX AT 1KHz, 25°C

6. Voltage proof: 2100VDC 1Sec (20°C)

7. Insulation resistance:

>30,000MΩ (C≤0.33uF)

>10,000MΩ/ uF (C>0.33uF) AT 25°C

8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,

1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,

ΔIR≥50% of the specified value.

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Application

Available for EMI filter
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...

Ompany Information

Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors. So far, our products have obtained UL, ENEC, CB, CQC, safety approval and company certification by ISO-9001:2008 quality assured firm.

We use efficient automatic equipment which ensures maximum consistency in your OEM orders to produce each capacitor. With 12 years of industrial experience, Don't hesitate to contact us

If you have any question, we always supply competitive price and good quality products.

FAQ

1. Are you a manufacturer?

A: Yes, we are the manufacturer. We have one factory in DongGuan, Guangdong, China. You are warmly welcome to visit our factory.

2. Can I order if quantity less than MOQ?

Yes and it would be taken as sample order to production. We take more serious on sample order.

3. Can I get Free Samples?

Yes. If samples we have in stock would be provided free for testing. However, the shipping fee should be paid by your side.

4. Can I order with my LOGO printing, size, shape and package?

Yes, we do OEM. We also have professional design team for you if you need.

5. What is your lead-time?

OEM order: 15-20 DAYS. NORMAL order: 2-7 DAYS.

6. What's your guaranty?

Our company has a strict quality check system which ensures that our products achieve consistent quality standards. All quality problem or damage during delivery will be Refundable and Exchangeable.
